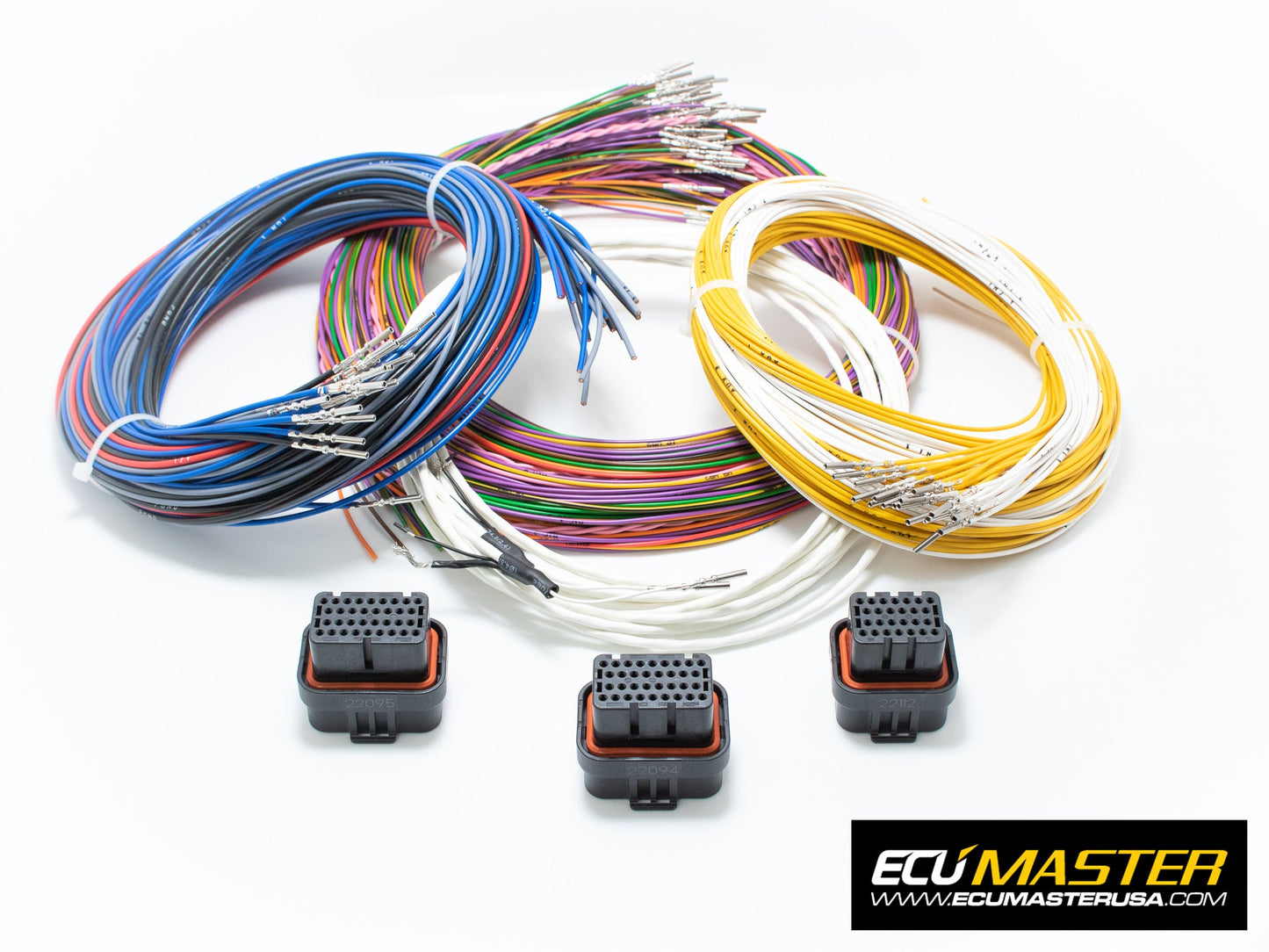

ECUMaster Printed Flying Lead Harness for EMU PRO-8

The Printed Flying Lead Harness for the ECUMaster EMU PRO-8 is the perfect starting point for your custom ECUMaster EMU PRO-8 installation. Whether you have a unique engine combination or just want to start with brand new wiring. Our 2.5 meter harness utilizing FLRY-B wire is the perfect backbone for your project.

Included Items:

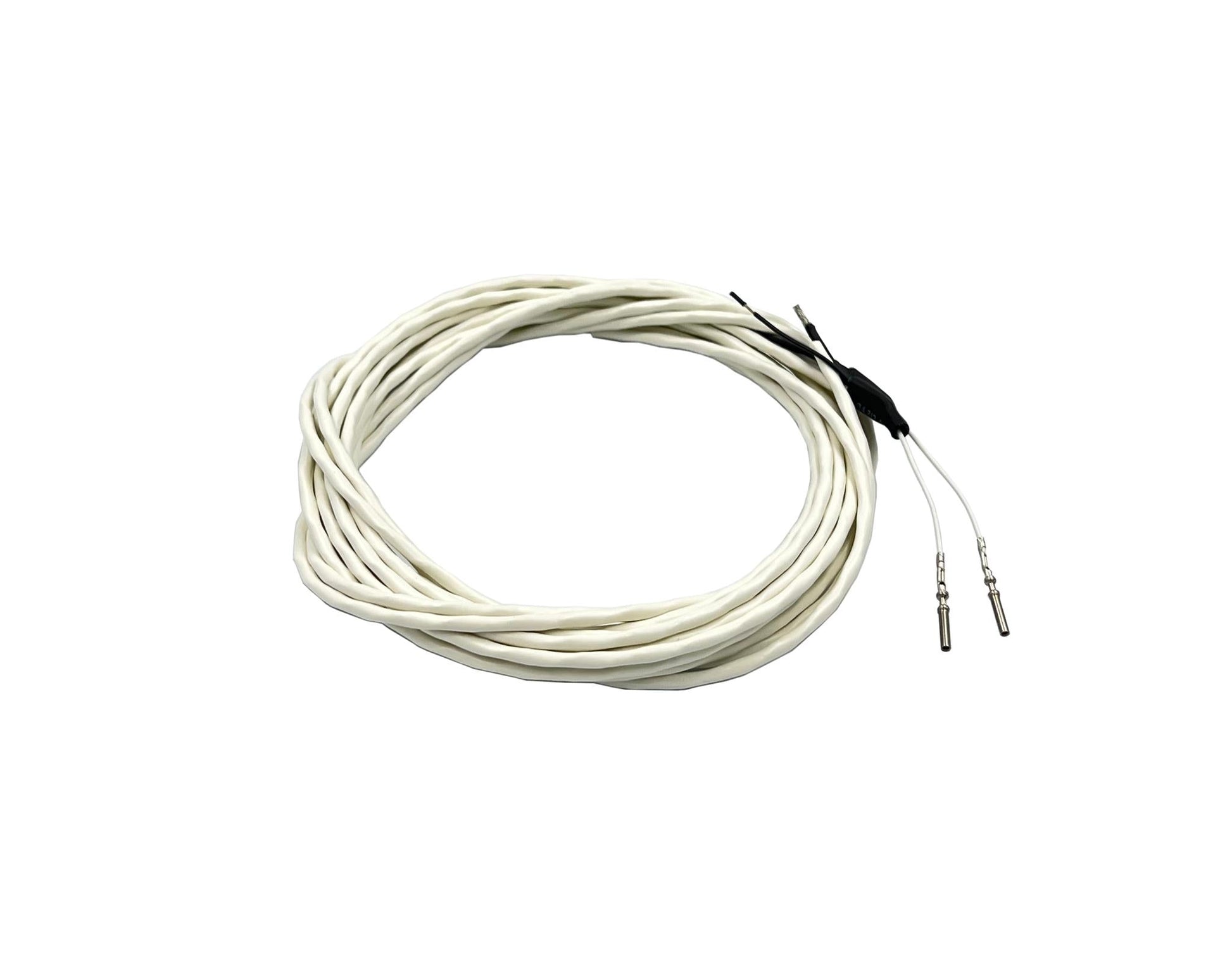

2x Raychem shielded wire

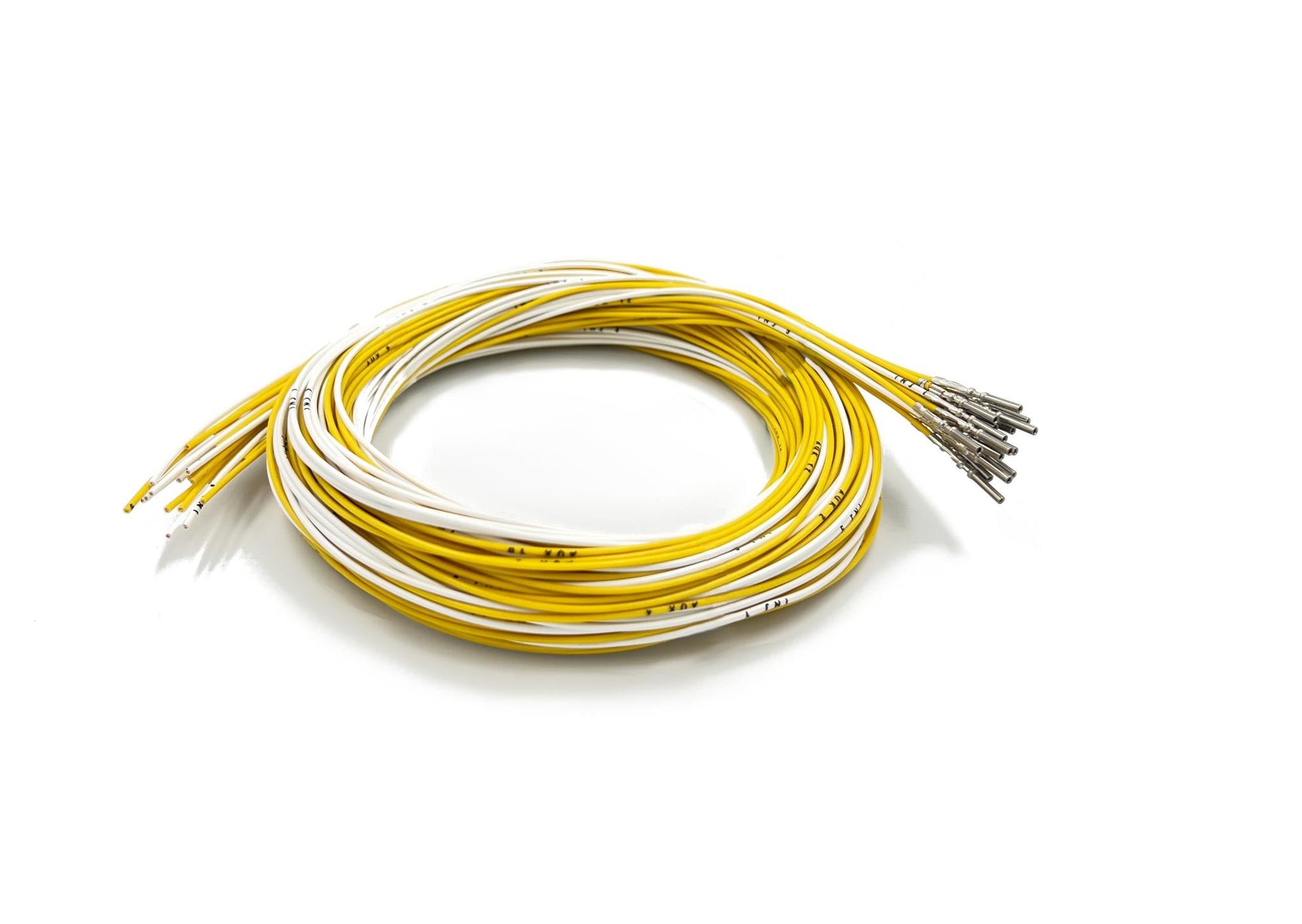

8x Injector leads - White - 20AWG - (individually labeled INJ 1-8)

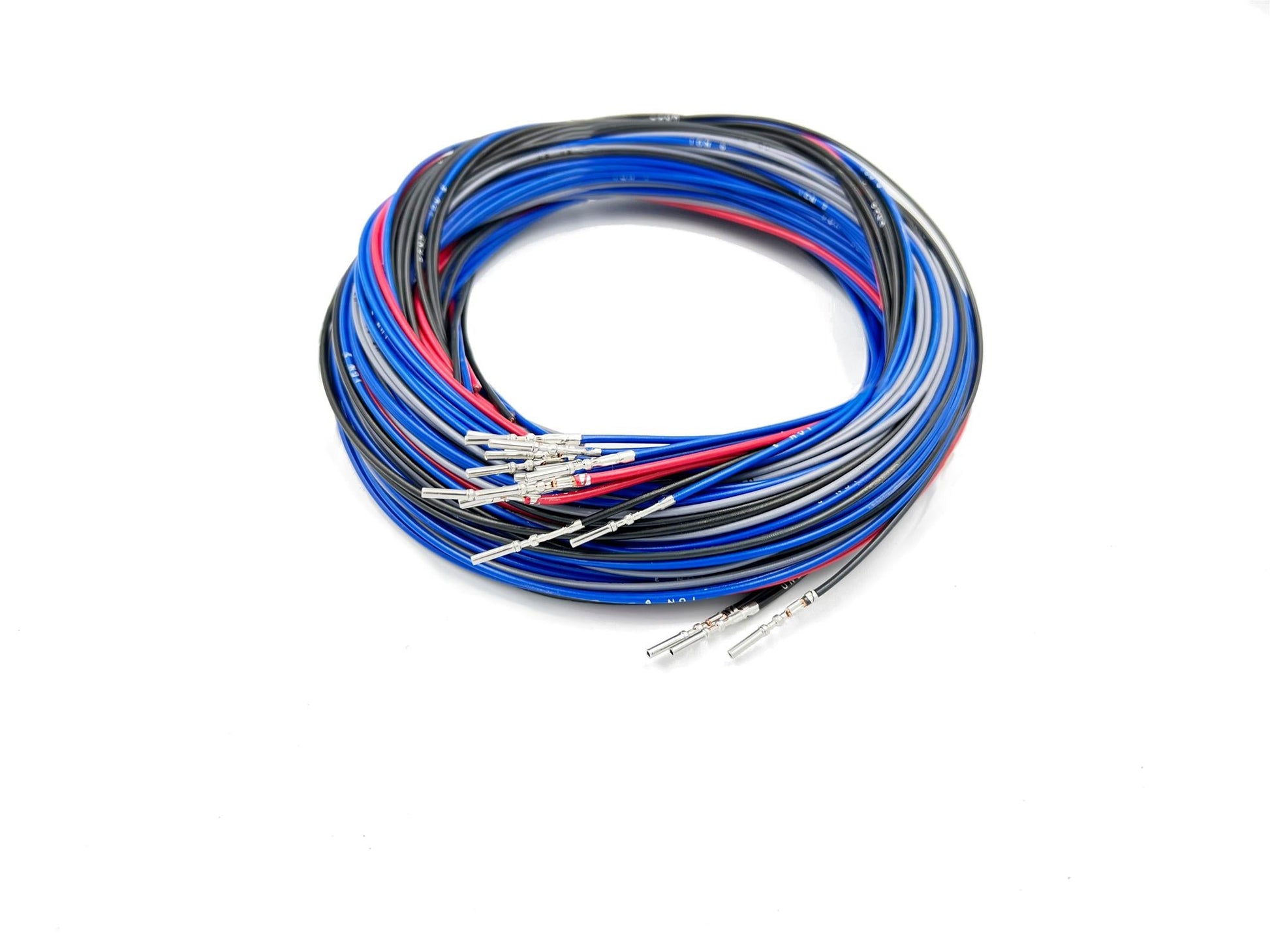

8x Ignition leads - Blue - 18AWG - (individually labeled IGN 1-8)
12x AUX leads - Yellow - 20AWG - (individually labeled AUX 1-12)
6x H-Bridge leads - Gray - 18AWG - (individually labeled HB1A/HB1B-HB3A/HB3B)
16x Analog Input leads - Purple - 22AWG - (individually labeled AIN 1-16)
4x Precision Analog Input leads - Purple - 22AWG - (individually labeled AIP 1-4)
1x PGND - Black - 18AWG - PGND - C30
1x PGND - Black - 18AWG - PGND - D18
1x PGND - Black - 18AWG - PGND - A11
1x PGND - Black - 18AWG - PGND - A19
1x PGND - Black - 17AWG - PGND - A17
1x PGND - Black - 17AWG - PGND - B19
3x AGND, DGND Leads - Brown - 22AWG
8x Digital Input Leads - Green - 22AWG - (individually labeled DIG1-DIG8)
1x WBO - Black-Yellow - 22AWG - WB1IP
1x WBO - Black-Yellow - 22AWG - WB1VS
1x WBO - Black-Yellow - 22AWG - WB1RC
1x WBO - Black-Yellow - 22AWG - WB1VG
1x WBO - Black-Yellow - 22AWG - WB1HT
1x WBO - Black-Yellow - 22AWG - WB2IP
1x WBO - Black-Yellow - 22AWG - WB2VS
1x WBO - Black-Yellow - 22AWG - WB2RC
1x WBO - Black-Yellow - 22AWG - WB2VG
1x WBO - Black-Yellow - 22AWG - WB2HT
2x +5V - Orange - 22AWG - +5VA
2x +5V - Orange - 22AWG - +5VB
2x +12V - Red - 17AWG - +12V
1x +12V Switched - Red - 22AWG - +12SW
2x CAN Twisted Pair Leads - Pink - 22AWG - (Pairs are labeled as CAN1L/CAN1H-CAN2L/CAN2H)
1x LIN - Pink - 22AWG - LIN
