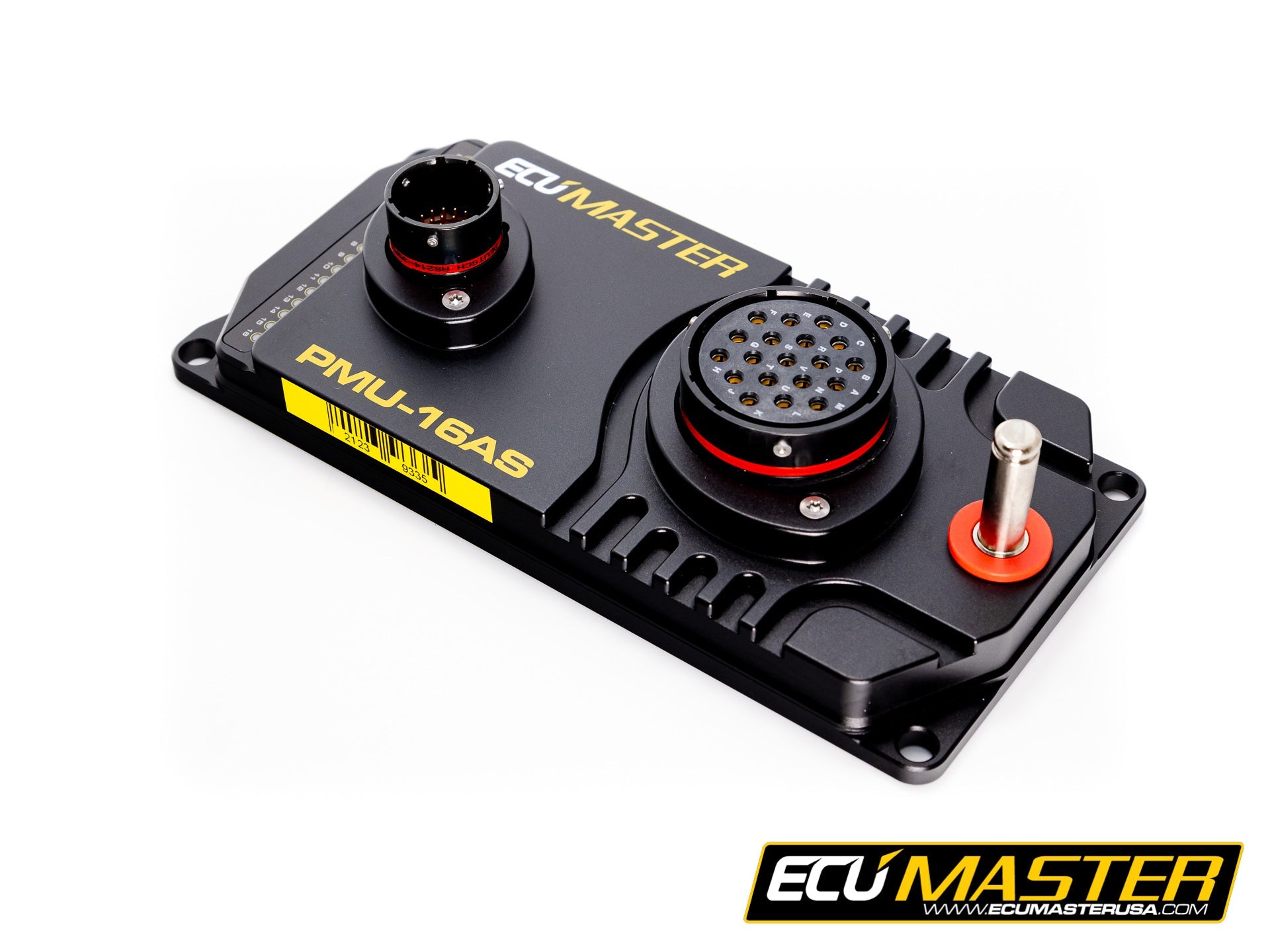

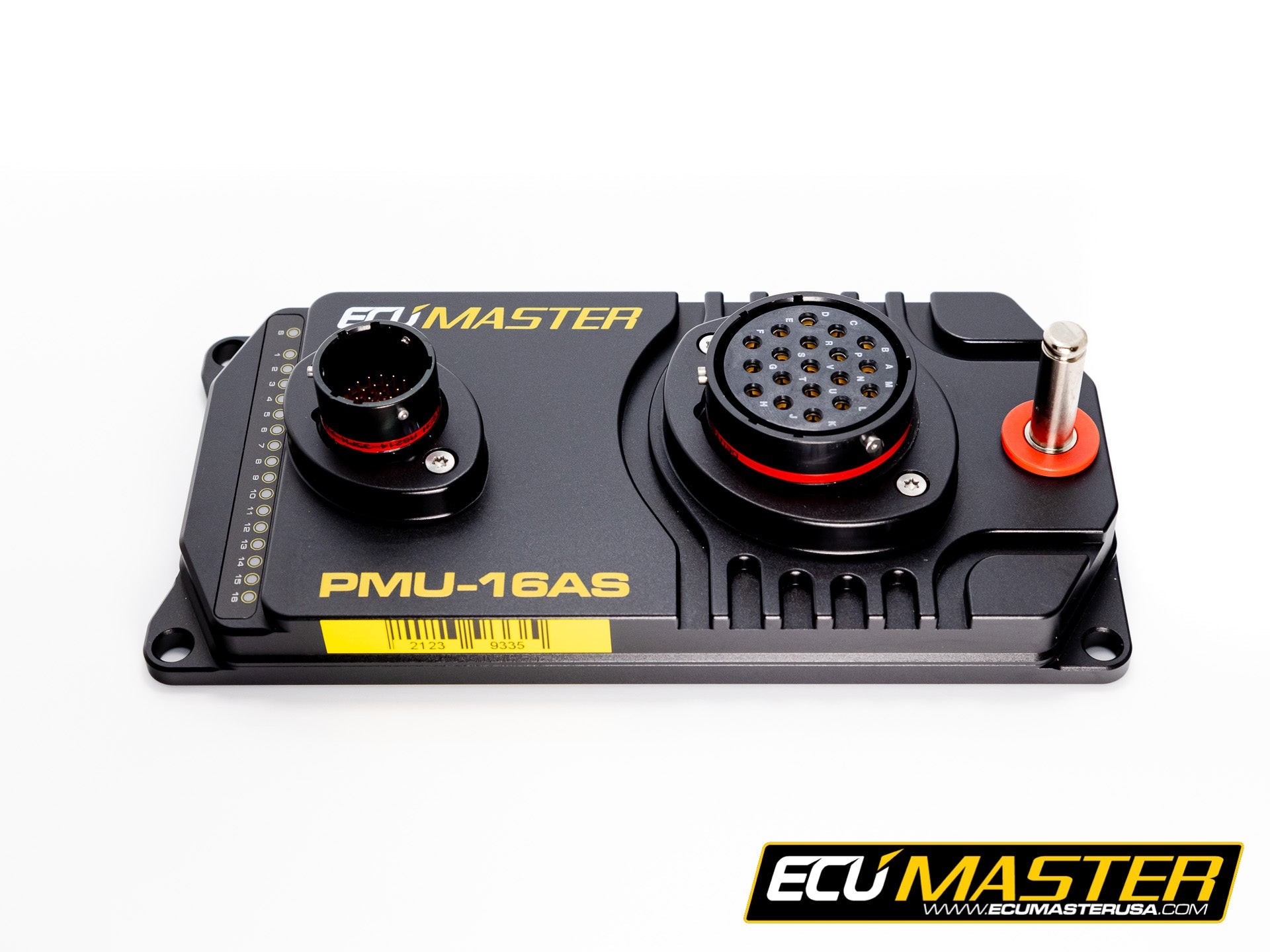

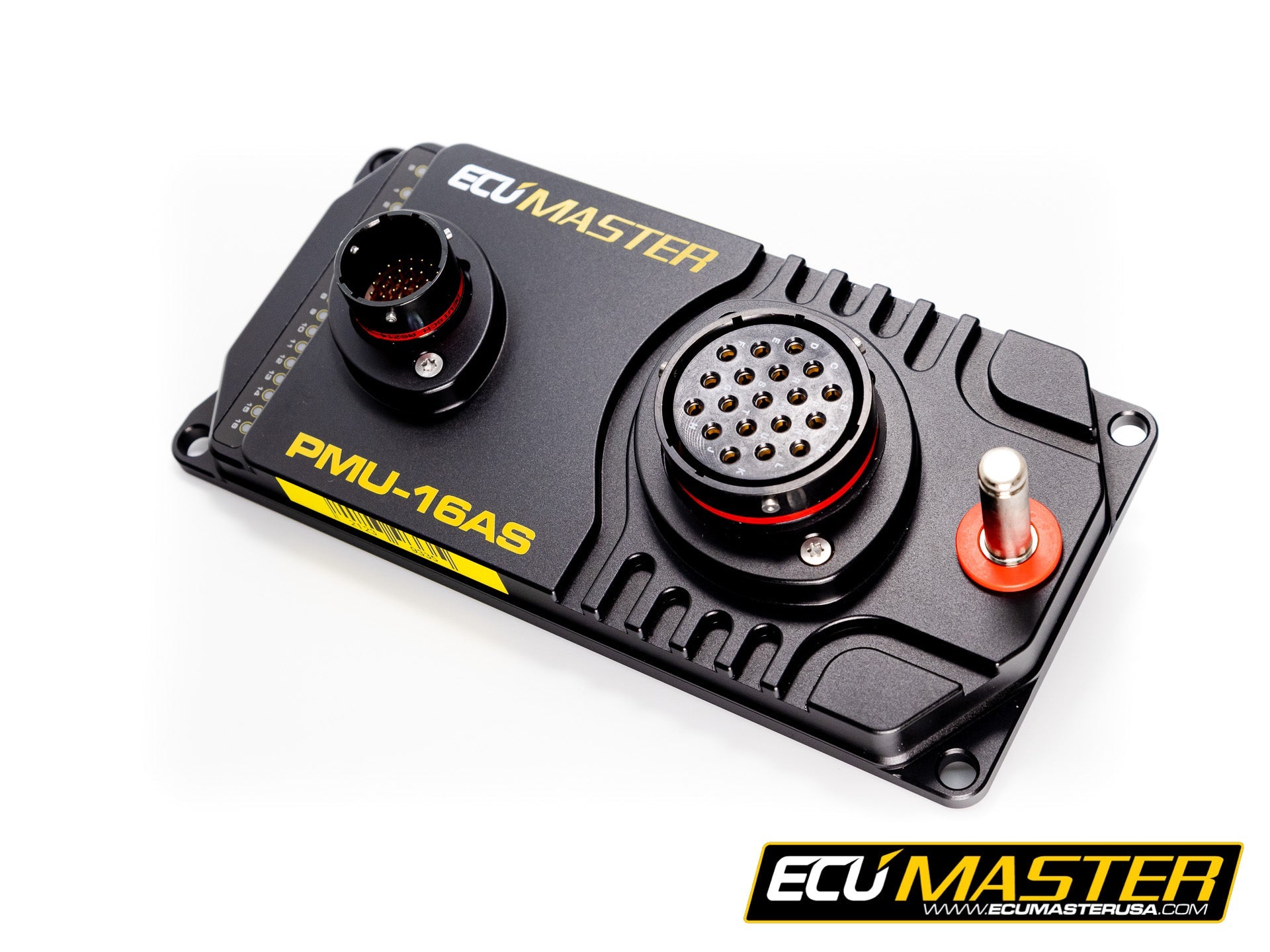

ECUMASTER PMU16 Autosport Power Management Unit

The ECUMaster brand has quickly become popular for delivering excellent value and performance. This ethos was noticed by high caliber

motorsport customers and OEMs , which created a need for motorsport grade products. We would like to introduce
the new PMU16 AS, a motorsport grade power distribution module built for the most demanding customers and applications.

The PMU16 Autosport Version is designed for demanding customers
and installations where reliability and robustness are top priorities.
Autosport connectors represent the highest quality connector
available, and are the standard for professional motorsports and
aerospace industries. The battery connection utilizes a RadlokTM
connector rated to 200 amps that can be disconnected without the need
for any tools. The output connector is a custom 18 pin, 12 gauge
connector designed and manufactured specifically for Ecumaster. The
unit features an IP65 environmental protection rating, permitting its
use in the harshest of conditions, including dusty and wet
environments.

Compared to the standard PMU16, 6 low side outputs have been added
and are rated at 2 amps per channel. 14 of the main output channels
are rated at 25 amps, with two output channels rated at 40 amps.
As always with Ecumaster products, mating connectors and terminals
are included at no extra cost, which represents a substantial savings
and saves the hassle of ordering separate components.

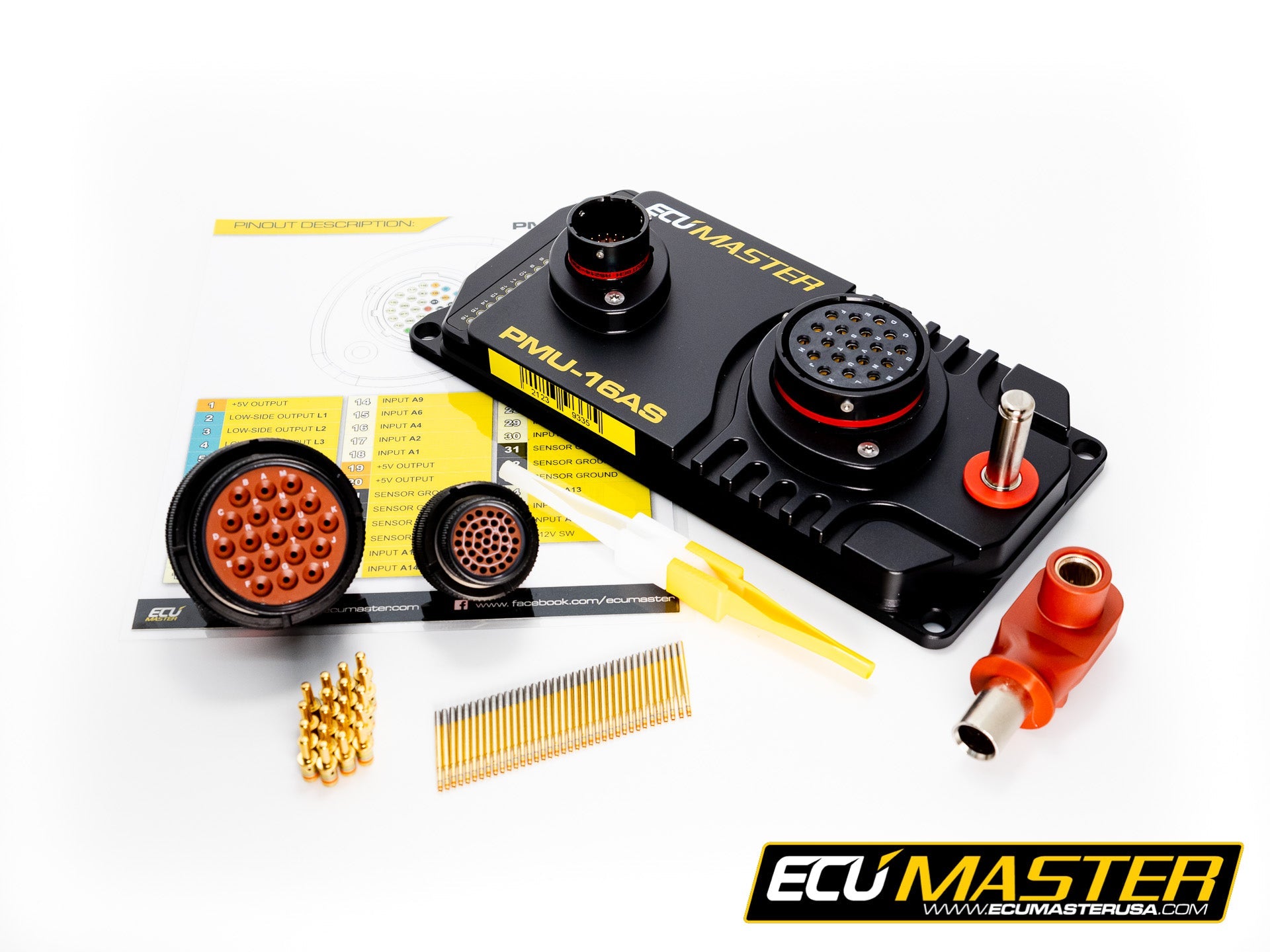

WHAT'S IN THE BOX?

• PMU16 AutoSport Device

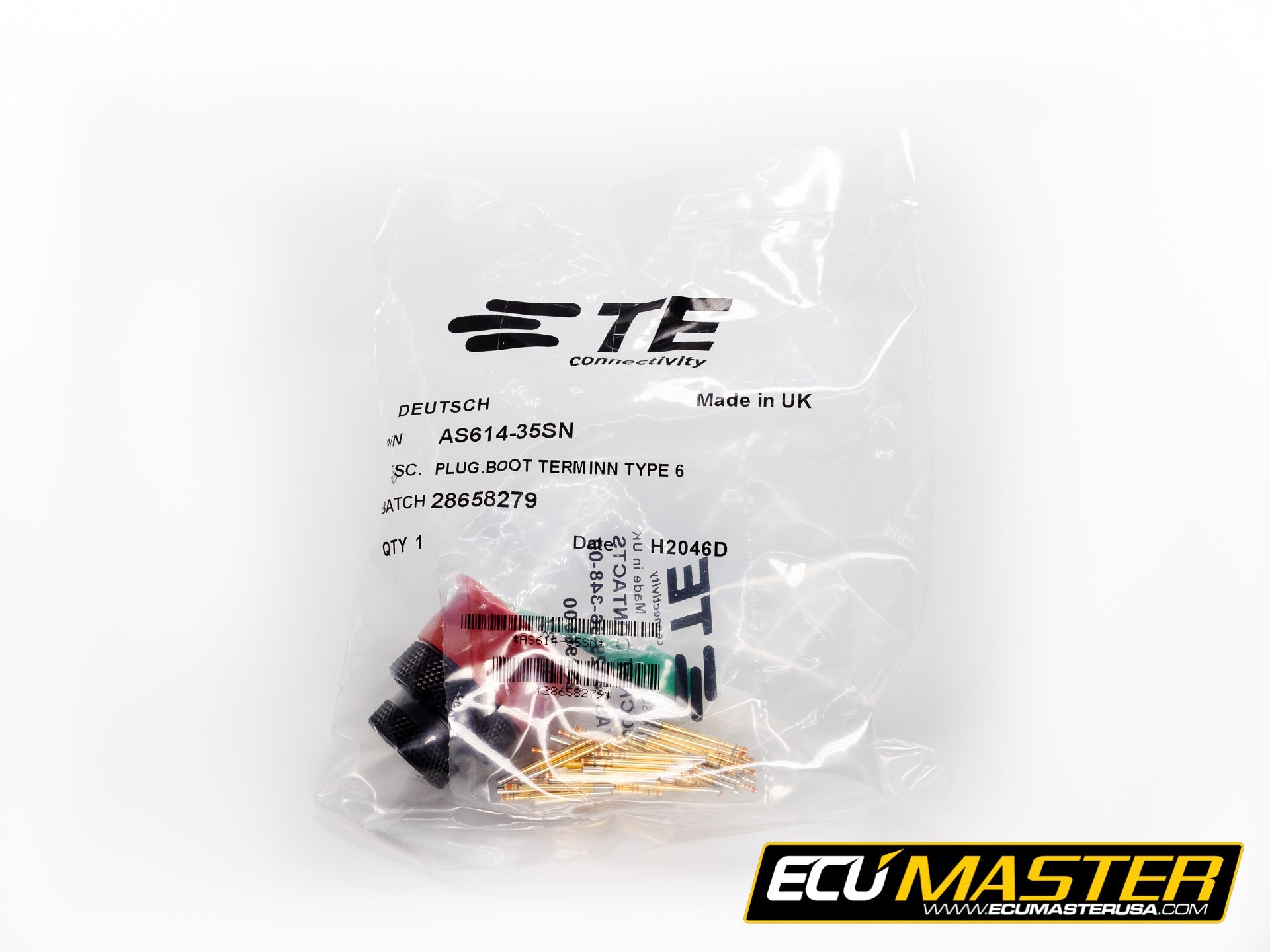

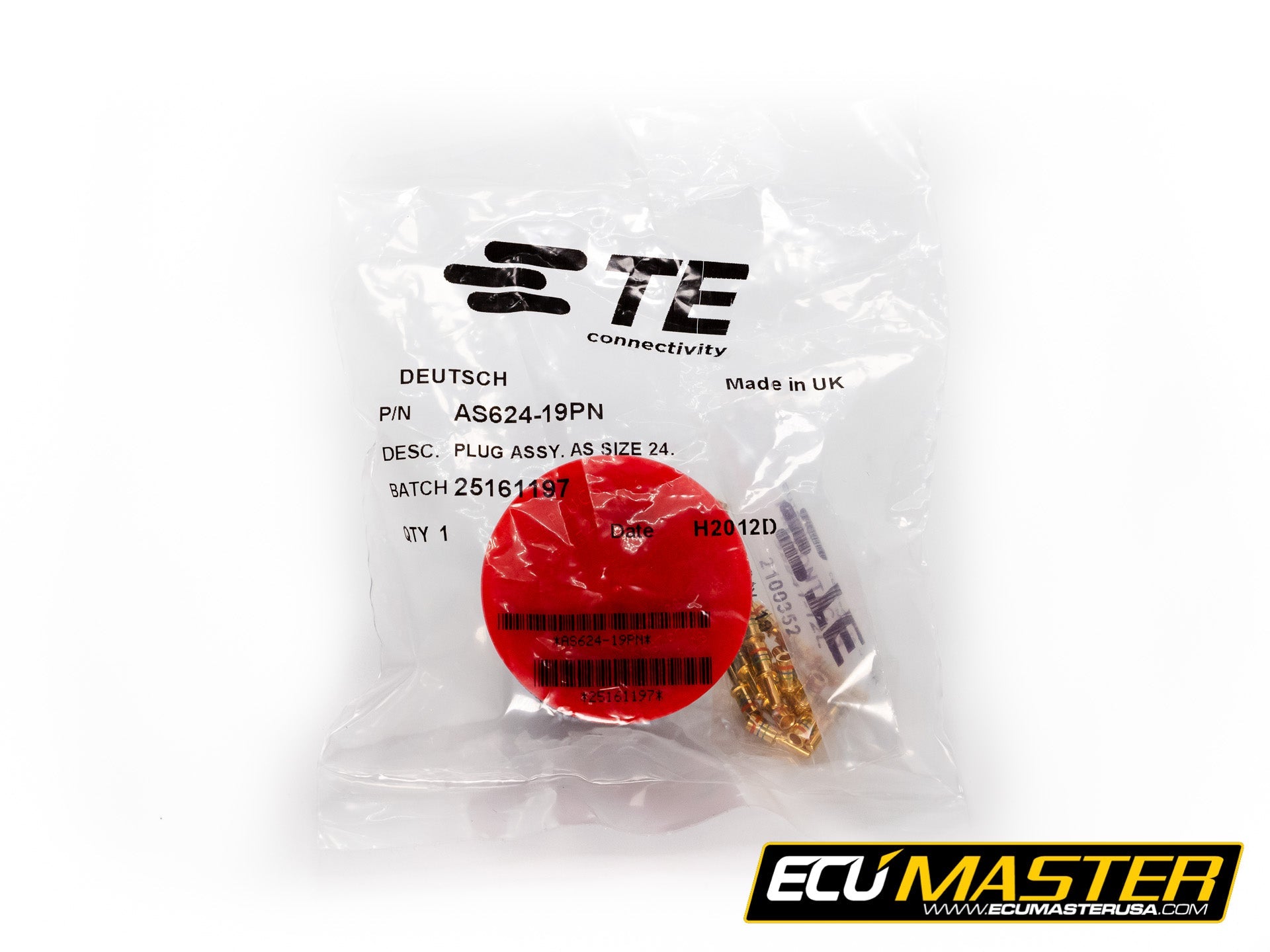

• Two Autosport Connectors with Terminals
• Radlok connector for power input
• Laminated Pinout Card

RECOMMENDED ACCESSORIES

• USB to CAN Adapter (you may use a Peak PCAN or Kvaser CAN cable, but one of these three USB to CAN interfaces must be used to program the device)

CAN Keyboard (mechanical switches may be connected to any of the 16 analog inputs, but CAN keyboards add functionality to the PMU16)

WIRING PINOUT CARD

PMU16 USER MANUAL

PMU16 SOFTWARE  (scroll down to PMU section)

CAN KEYBOARD WIRING,INSTALL,PROGRAMMING, AND PMU CONFIGURATION
